release time: 2014-06-23
1 Product use

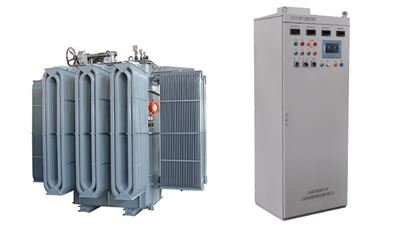

This product is a new series of products specially designed for the electric heating of synthesis towers, alcoholization towers and alkylation towers in the fertilizer industry. The voltage regulator is equipped with a digital voltage regulating control cabinet, which can realize automatic control according to the heating requirements of the upper computer measurement and control system. The design of this product is optimized, the technical and economic indicators are advanced, and the performance of the product is far ahead of the same industry in the country.
2 Product Features
a. The no-load current and total loss are only about 60% of the standard value, which is an ideal energy-saving product;
b. The lower limit voltage is lower than 30V, and the output voltage at rated load is greater than 650V;
c. The high and low voltages are electrically isolated by double loops, which is safe and reliable to use;
d. The product structure is compact, solid, reasonable in design, beautiful in appearance and easy to use.
3 Digital voltage regulator control cabinet
a. The digital voltage regulation control cabinet has two voltage regulation modes: jog and automatic. By switching the selector switch, it can also realize local
and remote control.
b. During automatic control, the voltage regulator can realize step-by-step automatic voltage regulation according to the requirements of the production process, and a maximum of 10 can be set.
The number of running stages, the total running time of each stage can be up to 9999 minutes (about 7 days).
4 Product Specifications
Product number |
cooling method |
Rated capacity kVA |
Phase |
frequency Hz |
Rated input voltage V |
Output voltage range V |
TGSA-xxx/6 |
Oil-immersed self-cooling |
630~8000 |
3 |
50 (60) |
6000 |
0~650 |
TGSA-xxx/10 |
630~8000 |
10000 |
Note:①The xxx data in the product model indicates the rated capacity;
②The voltage regulator designed according to 50Hz can also be used for 60Hz power supply;
③Capacity according to R10 priority number system: 630, 800, 1000, 1250, 1600, 2000, 2500, 3150, 4000, 5000,
6300, 8000kVA;
④The company can also undertake the design and manufacture of products that are not in the capacity and voltage specifications in this table.
